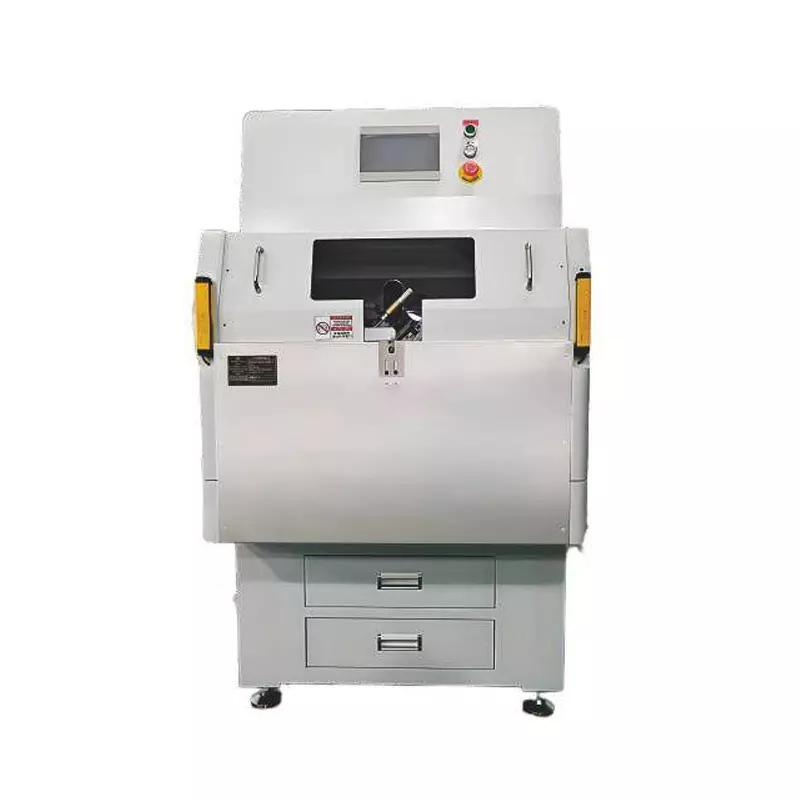

LKV-40

MOQ: 100 Pieces

Delivery time: 7 Day

1. Primarily processes small/large gauge wires (requires tooling change) with automatic stripping/aluminum foil removal/shield wire brushing and shearing

2. Supports 20 wire types in database

3. Connects to MES systems

4. Manual wire feeding only; completes stripping/aluminum foil removal/shield separation/shearing/back-flipping/front-flipping in a single operation

Product Details

LKV-40/Technical Parameters

Name	Processing Method	Parameter Range
Strip outer sheath	Servo-driven coaxial rotary cutter	OD 3-12mm, stripping length 1mm-40mm
Cut aluminum foil	Servo-driven coaxial rotary cutter	2mm-40mm
Shielding cut-off	Servo-driven brush-shear mechanism	4mm-40mm
Flip remaining shielding	Punch blade with post-shear flip	4mm-20mm
Strip inner sheath	Servo-driven coaxial rotary cutter	OD 3-12mm, stripping length 1mm-40mm
Equipment efficiency	/	15-18S
MES	/	Data Communication
Servo motor	/	6 sets
Stepper motor	/	1 set
HIWIN slide block	/	2 sets
Taiwan Yonghong PLC	/	2 sets
Database	/	20 pieces
Safety protection	/	Grating
