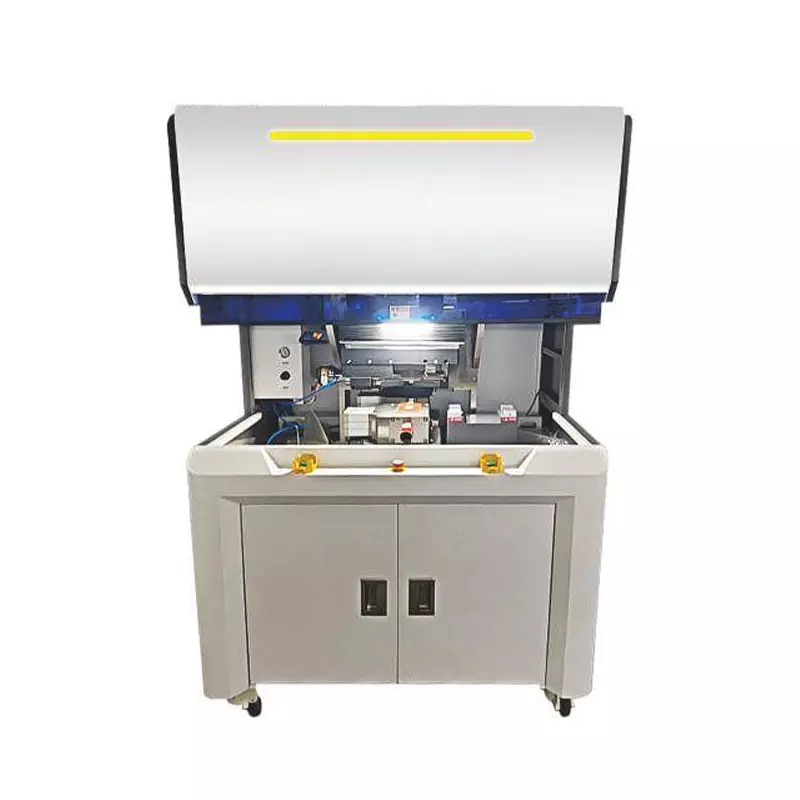

Ultrasonic welder

MOQ: 100 Pieces

Delivery time: 7 Day

1. Supports multi-brand barcode recognition and scanning functionality

2. Supports Ethernet, RS485, and RS232 data transmission

3. Supports USB data access functionality

4. Supports direct connection to personal PC control modules

5. Features 2 input and 2 output port expansion capabilities

6. Internal device storage capacity: 16GB

7. Supports one-to-one and one-to-many configurations without tooling replacement

8. Ensures robust soldering with no cold joints or solder cracks

Product Details

Before Process

After Process

Before and After Process

LKW-120/Technical Specifications

Name	Parameter Range
Controller	Features German Beckhoff bus control modules
Transducer	Imported from Germany
Pneumatic	Integrated with Japanese SMC pneumatic proportional valve control modules, enabling intelligent digital control of welding air pressure to ensure stable pressure and precise control
Vibration Bar	Domestic
Welding Head	Domestic
Lower Die Terminal Holder	Domestic
Welding Head Cooling Unit	/
Industrial Computer	Dell
Operating Frequency	20kHz
Input Voltage	AC 380V 50Hz
Welding Wire Gauge	Highly practical, capable of welding copper wire bundles ranging from 10 to 120 square millimeters
Equipment Power	12000W
Alarm Function	Pressure detection, safety light curtain
Interface Display	Displays welding time, energy, air pressure, amplitude, power, frequency, cycle count, and other information
Production Efficiency	Approximately 1.2 seconds per cycle, depending on wire cross-sectional area
Welding Pressure Control	Multi-stage welding pressure technology for achieving consistent welds
