SS-RSG-350Pro

MOQ: 100 Pieces

Delivery time: 7 Day

* Equipment function: It can achieve cutting, visual recognition of wire color, and automatic printing of corresponding content. The operator inserts the product end of the heat shrink sleeve into the hole to the limit, steps on the foot switch, and performs heat shrink operation on the heat shrink sleeve.

* The length, outer diameter, and reserved space outside the casing can be replaced with accessories; Visual automatic printing of marking content, heat shrink temperature and time can be set through parameter settings.

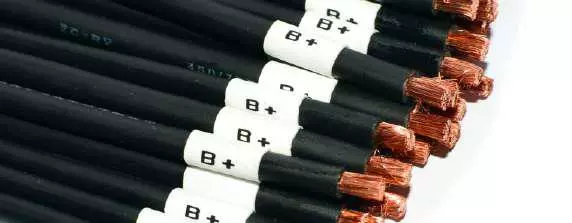

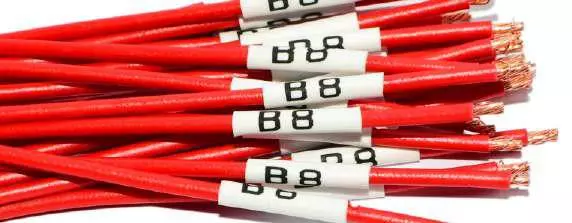

* Scope of application: Wire harness products that require labeling and drying sleeves are basically applicable.

Product Details

Products Description

Technical parameter

Model	SS-RSG-350	SS-RSG-350Pro (Visual edition)
Power supply	AC 220V 50/60Hz
Air pressure	0.5-0.6MPa
Casinglength	8MM-100MM
Casing diameter	M1.0-M6
accuracy	±0.5mm
Efficieney	Single channel: 500-800; Dual channel: 800-1200 (depending on pipe length and operator skill)
Yield rate	98% (with proper operator skill)
power	3KW
Product size	1.6m × 0.8m × 1.3m (L × W × H)
Produet weight	260 kg
