SS-RSG-200mini

MOQ: 100 Pieces

Delivery time: 7 Day

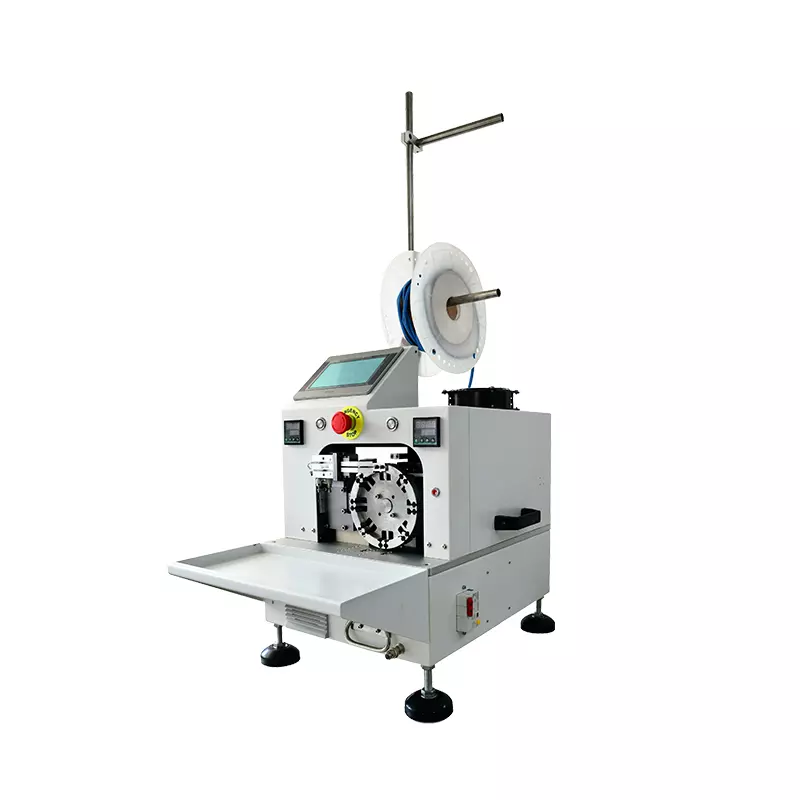

* This equipment is a desktop general-purpose equipment, which is small in size and easy to use. Heat shrinkable sleeve capable of cutThe operator inserts the product end of the heat shrinkable sleeve into thehole to the limit position, and then presses the foot switch to heat shrink.Carry out heat shrinkage operation on casing.

* The length, outer diameter and reserved position outside the casing can be replaced with accessories,The thermal shrinkage temperature and time can be adjusted by parameters.

* Wire harness needs to be dried, and the products are basically applicable.

Product Details

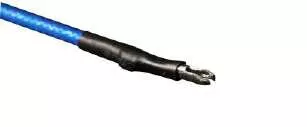

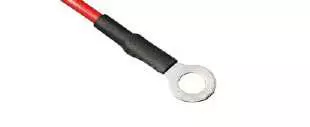

Applicable wire range

Technical parameter

Model	SS-RSG-200 (Mini Model)
Power supply	AC 220V 50/60Hz
Air pressure	0.5~0.6MPa
Casinglength	8MM-100MM
Casing diameter	Ф 1.0-Ф 6
accuracy	±0.5mm
Efficiency	800-1200 (Depending on pipe length and operator skill)
Yield rate	98% (Assuming operator is properly trained and skilled)
Power	2KW
Product size	0.7m × 0.5m × 0.7m (L × W × H)
Product weight	90 kg
