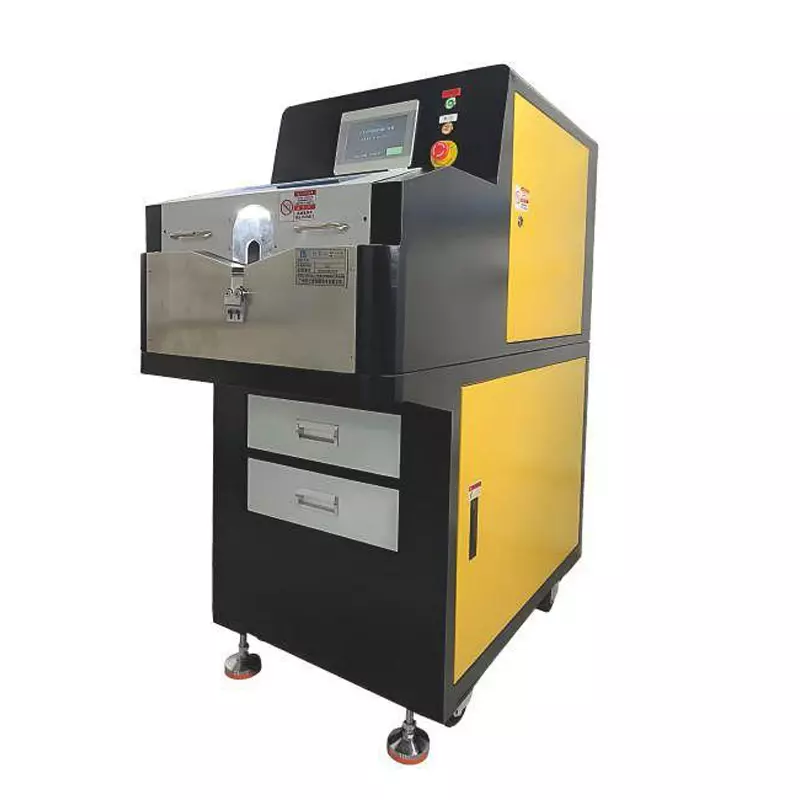

LK-SJC-115
MOQ: 100 Pieces
Delivery time: 7 Day
1. Servo motor control ensures more precise positioning
2. One-step solution for shielding processes: break-up, shearing, and rear/front flipping
3. Data storage allows quick recall by entering stored codes
4. Tungsten steel blades withstand up to 100,000 shielding wire cuts
Product Details
LK-SJC-115/Technical Specifications
| Name | Equipment Configuration | Parameter Range |
| Equipment Display and Digital Input | Touchscreen | 7 inches |
| Shield Retention Length Control | CNC Adjustment | 3mm to 10mm |
| Shield Forward/Reverse Brush Length Control | CNC Adjustment | 10mm to 115mm |
| Product Compatibility Range, Combined Brush Fine-Tuning Control | CNC Adjustment | 3mm to 29mm |
| Product Specification Database | CNC-set parameters can be saved and recalled | 20 types |
| Equipment Cycle | Based on shielding mesh winding density and length | 3.55-12S |
| Equipment Tooling Applicability Range | Custom-made cutting tools for core wires | Compatible with core wires with a negative tolerance of 0.5mm. For example, if the tool is designed for a 5mm core wire, it can accommodate core wires with outer diameters of 4.5mm and 5mm. |
| Equipment Program Library Settings | 20 database address programs | / |
| Power Requirements | / | 220V |
| Air Supply Requirements | / | 0.6 bar |
| Site Requirements | / | L910 × W1020 × H1400 (mm) |
| Work Performed for Product Changeover | 1. Tool replacement: Replace brushes 2. Load corresponding program from database |
Time required: 6 minutes |
