LK-S01W S02W S03W S04W S05W
MOQ: 100 Pieces
Delivery time: 7 Day

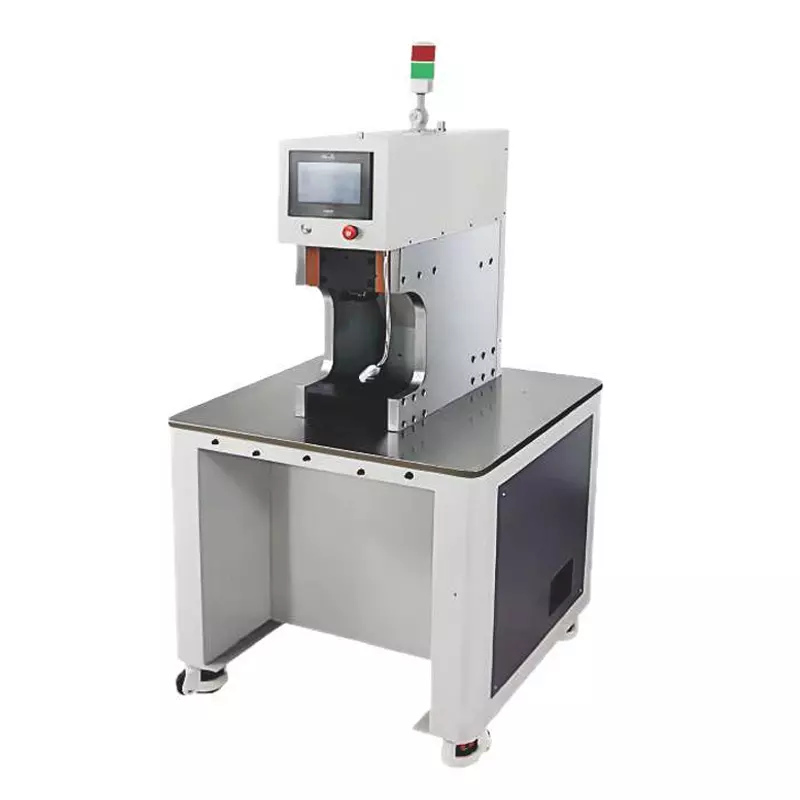

1. This machine is designed for crimping large-gauge cables and can be equipped with open hexagonal no-change dies, closed hexagonal no-change B-type guide pillar dies, and square dies.
2. Utilizing branded servo motors and PLC control, the machine ensures precise operation and simple setup. Operators can directly control functions via the machine's touchscreen and store multiple sets of parameters for instant recall.
3. Beyond standard configurations, this machine can be upgraded with pressure detection and barcode scanners, and can integrate with existing factory MES systems.
Product Details
Process Before
Process Station 1
Process Station 2
LK-S01W-S05W/Technical Specifications
| Name | LK-S01W | LK-S02W | LK-S03W | LK-S04W | LK-S05W |
| Features | Crimping | Crimping | Crimping | Crimping | Crimping |
| Dimensions | 755*555*1400mm | 760*560*1450mm | 800*650*1500mm | 800*650*1500mm | 805*655*1530mm |
| Machine Weight | 265kg | 321kg | 380kg | 380kg | 455kg |
| Motor Power | 2300W | 1500W | 1500W | 1800W | 2300W |
| Rated Voltage | 220V/50Hz/60Hz | 220V/50Hz/60Hz | 220V/50Hz/60Hz | 220V/50Hz/60Hz | 220V/50Hz/60Hz |
| Stroke | 42mm | 50mm | 42mm | 42mm | 42mm |
| Required Compressed Air | Not required | Not required | Not required | Not required | Not required |
| Production Capacity | 6 seconds/cycle | 6 seconds/cycle | 9 seconds/cycle | 12 seconds/cycle | 14 seconds/cycle |
| Maximum Crimping Force Available | 10 T | 20 T | 30 T | 40 T | 50 T |
| Maximum Wire Gauge Range for Crimping | 75 square meters | 120 square meters | 160 square meters | 240 square meters | 25A square meters |
| Warranty | 1 year (excluding consumables and damage caused by human error) |
1 year (excluding consumables and damage caused by human error) |
1 year (excluding consumables and damage caused by human error) |
1 year (excluding consumables and damage caused by human error) |
1 year (excluding consumables and damage caused by human error) |
